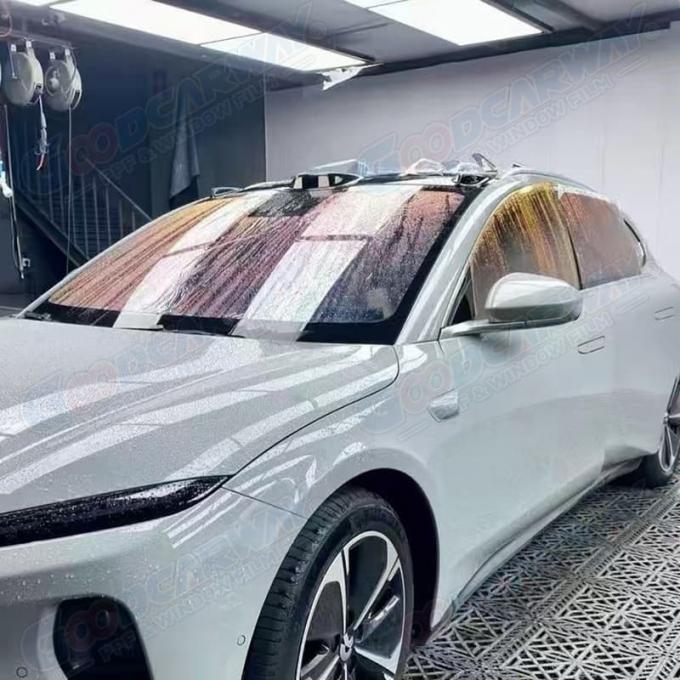

JR Series Ceramic & Sputter Film: Heat-Control and Color-Shifting Window Film Solution
The JR Series is an optical-grade PET window film developed for applications that require infrared heat control, ultraviolet protection, visible-light transmission, and a distinctive color-shifting appearance. It combines a multilayer optical structure with nano-titanium nitride heat-insulation material and magnetron sputtering technology.
With multiple visible light transmission options, OEM support, and stock available for quick shipment, the series is suited to high-end and flagship brands seeking a customizable private-label film solution.
Product Specifications
| Product Type | Ceramic & sputter film |
|---|---|
| Material | Optical-grade PET film |
| Standard Roll Size | 1.52 m * 30 m |
| Visible Light Transmission (VLT) | 20% / 40% / 70% / 90% |
| Adhesive | High-performance pressure-sensitive adhesive |
| Surface Protection | Scratch-resistant hard coat |
| Infrared Performance | Blocks more than 97% of infrared radiation in the 900–1400 nm range |
| Ultraviolet Performance | Blocks 99.9% of ultraviolet rays |
| Material Warranty | 8 years against fading, bubbling, and delamination |
| Color-Shifting Function Warranty | 5 years |
| Coating and Film Technology | Three-layer BH215 substrate combined with continuously variable nano-titanium nitride heat-insulation material and a magnetron sputtering process |
| OEM Availability | Custom dimensions, colors, specifications, and branding options |
| MOQ for Custom Specifications | 8,000 m |
How the JR Series Optical Structure Works
The JR Series applies biomimetic principles to reproduce the optical behavior behind the color-shifting effect seen in butterfly wings. Its structure contains more than 100 stacked layers, allowing the film to manage different parts of the solar spectrum rather than relying on a single functional layer.
This multilayer design selectively reflects infrared heat while maintaining visible light transmission. The film blocks more than 97% of infrared radiation within the 900–1400 nm range and 99.9% of ultraviolet rays. Its stated ultraviolet protection reaches an SPF rating above 1700, described as equivalent to the protection of more than 30 layers of SPF 30 sunscreen.
The optical structure also produces the JR Series’ color-shifting visual effect. This gives brands an opportunity to combine functional heat and UV management with a more distinctive product appearance.
Core Application Benefits
Infrared Heat Control
More than 97% of infrared radiation in the 900–1400 nm range is blocked, helping reduce the infrared heat entering through the glass.
High UV Protection
The film blocks 99.9% of ultraviolet rays, supporting applications where UV exposure and solar protection are key product requirements.
Multiple VLT Options
Available VLT levels of 20%, 40%, 70%, and 90% allow product selection according to the required balance of shading, visibility, and natural light.
Distinctive Color-Shifting Appearance
The biomimetic multilayer structure creates a recognizable optical effect suitable for premium product lines and differentiated private-label collections.
Installation-Oriented Construction
A high-performance pressure-sensitive adhesive supports bonding to glass, while the scratch-resistant hard coat helps protect the film surface during use.
Warranty Support
The product includes an 8-year material warranty against fading, bubbling, and delamination, plus a 5-year warranty for the color-shifting function.
Application Solutions
Premium Private-Label Product Lines
The JR Series is suitable for high-end and flagship brands that require a technically differentiated window film with customizable packaging, colors, specifications, and branding.
Heat-Control Glass Applications
Its infrared-blocking performance makes the series suitable for glass applications where solar heat management is an important part of the product specification.
High-Visibility Film Requirements
The 70% and 90% VLT options support applications that prioritize a brighter view while still requiring infrared and ultraviolet management.
Enhanced Shading Requirements
The 20% and 40% VLT options provide alternatives for applications that require lower visible light transmission and a more noticeable film appearance.
Distinctive Visual Design
The color-shifting effect can be used as a visual differentiator for premium collections, specialty product ranges, and branded film programs.
Distributor and Brand Programs
Stock availability supports quick shipment, while OEM services enable brands and distributors to develop customized product presentations for their target markets.
Selecting the Appropriate VLT
Visible light transmission indicates the percentage of visible light that can pass through the film. A higher VLT allows more visible light through, while a lower VLT creates a darker result.
| VLT Option | Application Direction |
|---|---|
| 20% | For applications requiring lower visible light transmission and a darker appearance. |
| 40% | For applications seeking a moderate balance between shading and visible light. |
| 70% | For brighter glass applications that still require heat and UV management. |
| 90% | For applications prioritizing very high visible light transmission. |
The final appearance and visible light transmission of installed glass can be affected by the original glass. Product selection should therefore consider both the film specification and the glass to which it will be applied.
OEM and Private-Label Options
The JR Series can be supplied as a customizable solution for brand owners, distributors, and private-label programs. Available OEM options include:
- Custom roll dimensions
- Custom colors
- Custom product specifications, with a minimum order quantity of 8,000 m
- Custom boxes
- Custom sealing stickers
- Custom bags and labels
- Custom logos
- Custom shrink wrap
- Custom anti-counterfeiting stickers
Standard products are in stock and available for quick shipment. Customized orders are available according to the required dimensions, appearance, specifications, and branding configuration.
Frequently Asked Questions
What is the standard roll size?
The standard size is 1.52 m * 30 m.
Which visible light transmission options are available?
The JR Series is available in 20%, 40%, 70%, and 90% VLT options.
Does the film provide both infrared and UV protection?
Yes. The stated performance is more than 97% infrared blocking in the 900–1400 nm range and 99.9% ultraviolet blocking.
Can the product and packaging be customized?
Yes. Available options include custom dimensions, colors, specifications, boxes, bags, labels, logos, shrink wrap, sealing stickers, and anti-counterfeiting stickers.
What is the minimum order quantity for custom specifications?
The minimum order quantity for custom specifications is 8,000 m.
What warranty is included?
The film includes an 8-year material warranty against fading, bubbling, and delamination. The color-shifting function is covered by a 5-year warranty.
Is the JR Series available for quick shipment?
Yes. Standard products are in stock and ready for quick shipment.
